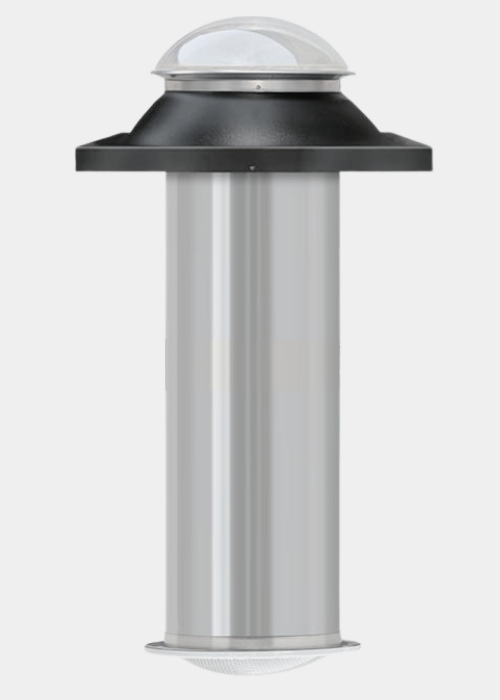

13 Inch Tubular Skylights

Name: 13 Inch Tubular Skylights
Brand: Natural Light Energy Systems - USA
Price: 2365.0 AED
Availability: InStock

2,365.00 AED

Shipping calculated at checkout.

by Natural Light Energy Systems - USA

Description
Product Details

Jedan Energy offers high-quality tubular skylights, also known as solar sky tube or daylight pipe, that bring natural light into your home, office, warehouse, and more. Illuminate those hard-to-reach areas with our innovative solar tube technology.

1a: Acrylic Dome
100% impact modified, UV stabilized acrylic 15.25 inch (387mm) diameter and 5.0 inches (127mm) rise. Dome set in seamless aluminum collar 1 inch (25mm) high.

1b: Seamless Aluminum Flashing
Roof flashing made of seamless 1100 series aluminum .080 (2mm) inch thick. Dome opening is 13.325 inches (339mm) diameter. Overall diameter is 26.5 inches (673mm).

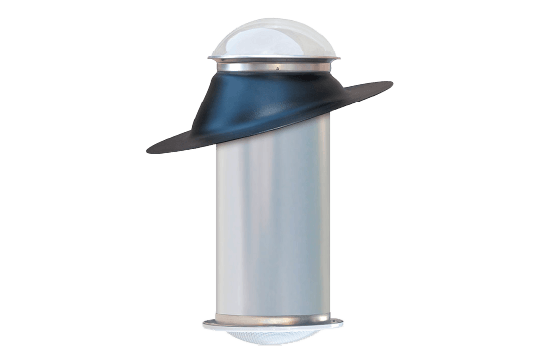

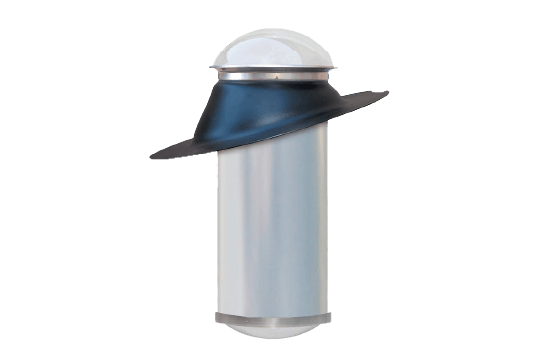

1. 1. Sloped mount fabricated with a 4/12 (27 degree) slope. 7.375 inches (171mm) high at low end, 4 inches (102 mm) high at high end with a 4 inch (102mm) flashing flange.

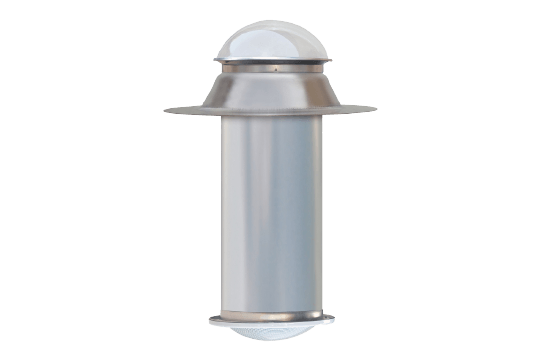

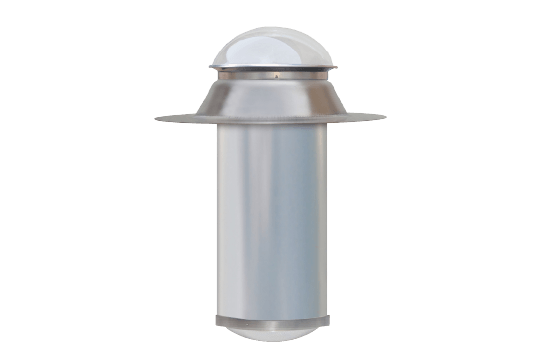

2. Flat roof mount. 5.5 inches (140 mm) high with a 4 inch (102 mm) flashing flange.

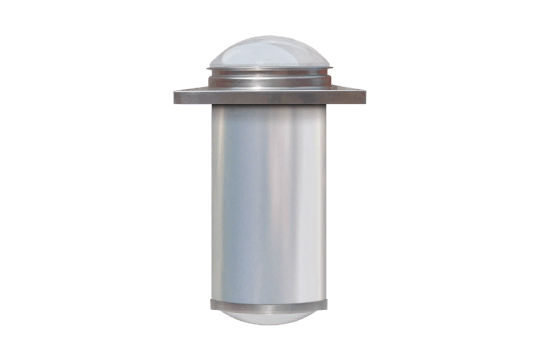

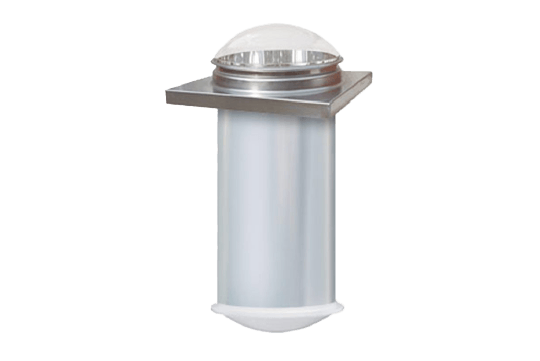

3. Curb mount. 22.375 inches (568mm) square curb with a 9.25 inches (235) rise and dome opening is 13.325 inches (339mm).

1c: Highly Reflective Light Pipe

13 inch (330 mm) diameter by 24 inches (610 mm) long. Alanod MIROSILVER with 98% total reflectance.

1d: Ceiling Trim Ring And Diffuser
100% impact modified; UV stabilized acrylic 13.25 inch (337 mm) diameter with snap in trim ring available in three options with snap in trim ring available in three options:
1. Prismatic
2. White

Light Output
Illuminates up to 150 sq. ft.
Equivalent of up to 500 watts

Performance Features:
May Qualify for Tax Credits
25 Year Product Warranty
Hurricane Tested/Approved
ICC-ES Listed

Common Application:
Master Bedrooms
Master Bathrooms
Kitchens
Family Rooms
Living Rooms
Home Offices
Garages
Work Rooms

Download Installation Sheet

Download Info Sheet

Option

For Quantities above 20 units please contact us on the below link.

Why Tubular Is A Better Choice than Traditional Skylights

There are several advantages to installing a tubular skylight versus a traditional skylight in your home or office. They are particularly a better choice for smaller spaces like closets, hallways, laundry rooms and pantries where installing a traditional skylight would not be practical.

Tubular Skylight Advantages

Emits more light

More energy efficient

Diffuses incoming light

Eliminates UV rays

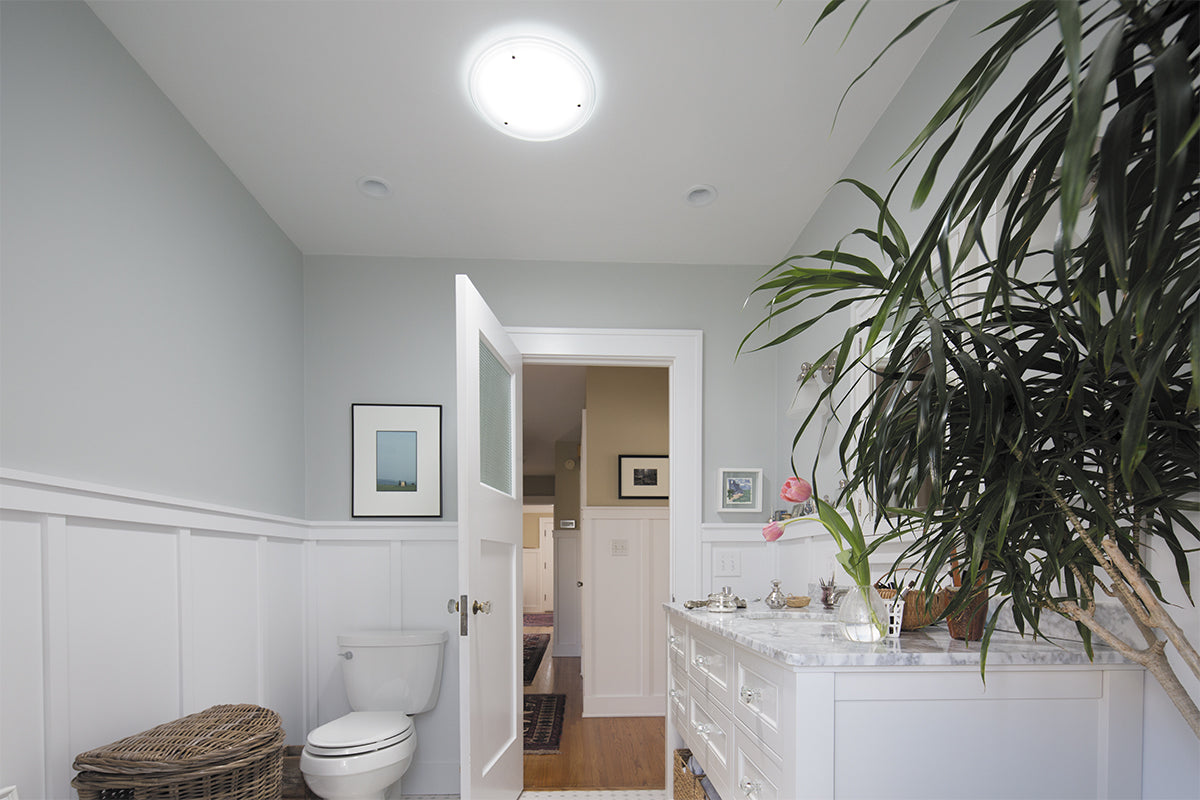

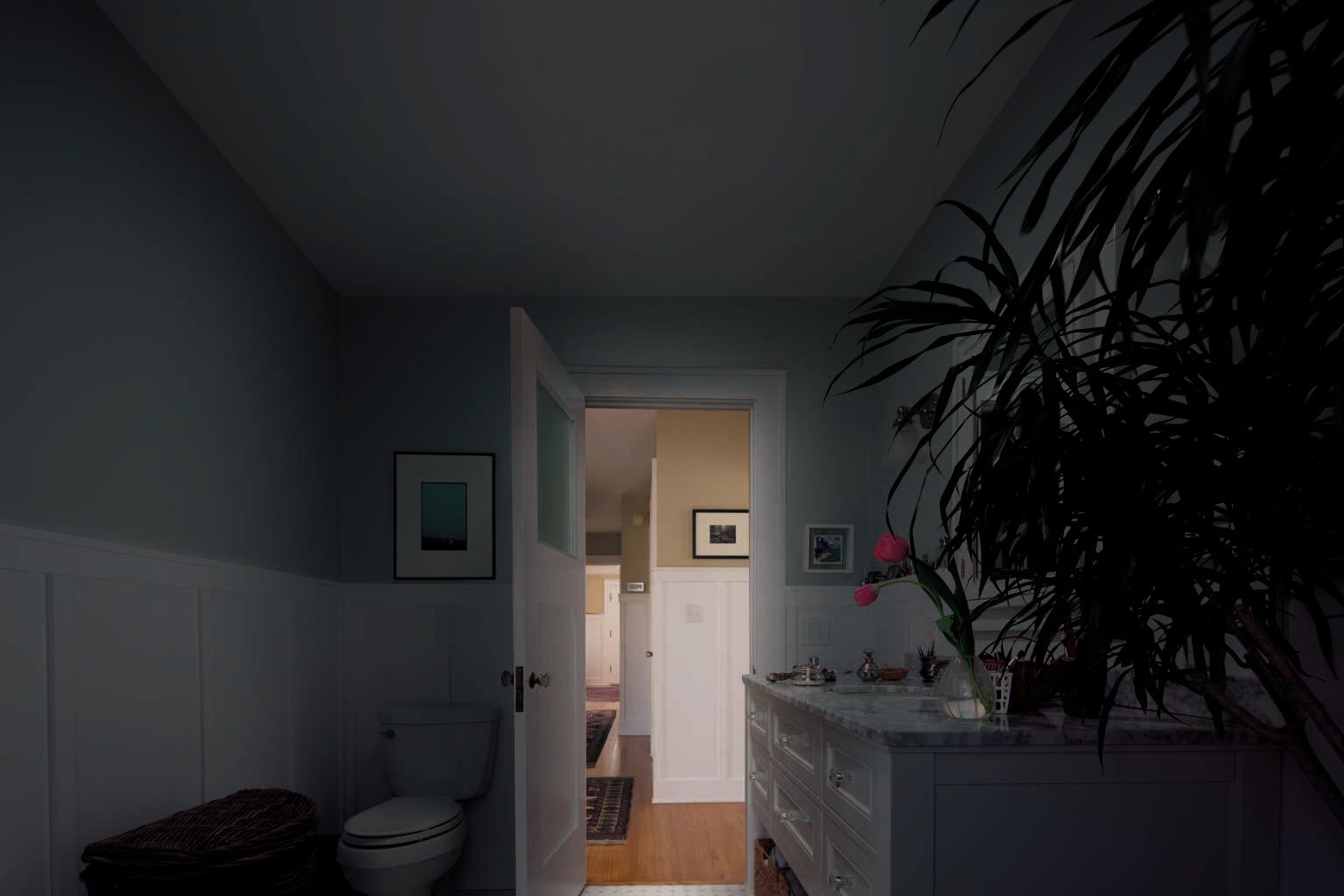

Side by Side Photos

Installation Cutaways

Installation procedures vary between the curb mount and flat roof models. Pictured are typical installations for both mounting types including all components and hardware. Please follow the detailed instructions for your model and roof type.
